S3(t) Flame Retardant Polyolefin Dual Wall Heat Shrink Tube Adhesive Liner | |

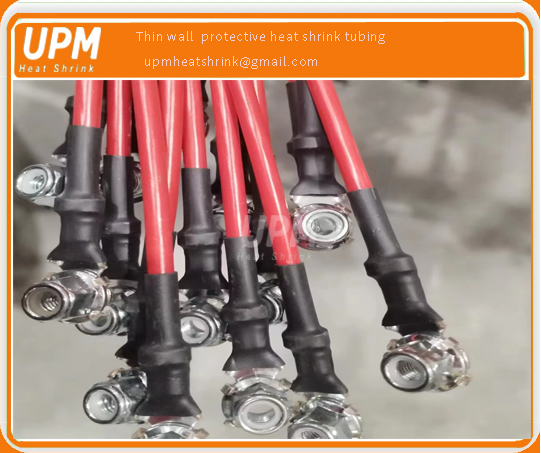

S3(t) Flame Retardant Polyolefin Dual Wall Heat Shrink Tube Introduction Flame retardant (except transparent), with hot melt adhesive liner, polyolefin dual wall heat shrinkable tube. Suitable for applications that require insulation, corrosion resistance and mechanical stress relief, including connectors, wiring harnesses, electronic components, etc. Features Operating temperature: -40 to 125°C Minimum full recovery temperature: 125°C Shrink ratio: 3:1 & 4:1 & 2:1 Environmental friendly, RoHS & ELV compliant Standard Color: Black. Unstandard: Clear, White, Red, Blue, Yellow, Green UL224 E341796 Technical Data Property Test Method Requirement Longitudinal change ASTM D2671 ≥-10% Tensile Strength ASTM D2671 ≥12 MPa Ultimate Elongation ASTM D2671 ≥300% "Heat Aging (158°C/168h) Tensile Strength Ultimate Elongation" ASTM D2671 " ≥10 MPa ≥200%" Water absorption (23°C/24h) ASTM D2671 ≤0.5% Low-temperature flexibility (-40°C/4h) ASTM D2671 No cracking Heat shock (250°C/4h) ASTM D2671 No cracking, dripping or flowing of outer jacket Dielectric strength ASTM D2671 ≥12kV/mm Volume resistivity ASTM D2671 ≥1.0×1014Ω.cm Dielectric Voltage Withstand AC 2500V, 60s No breakdown "Heat Aging (158°C/168h) Dielectric Voltage Withstand" ASTM D2671 " No breakdown" Flammability (outer layer, colors only) UL224 VW-1 Copper corrosion (150°C/168h) ASTM D2671 No corrosion Dimension Size As supplied(mm) After recovered (mm) S3(t) "Inner diameter D (min.)" "Inner diameter d (max.)" "Wall thickness t (nom.)" "Adhesive Wall thickness t1 (nom.)" 3.2/1.0 3.2 1.0 1.0 0.5 4.8/1.6 4.8 1.6 1.0 0.5 6.4/2.1 6.4 2.1 1.2 0.5 7.9/2.6 7.9 2.6 1.3 0.6 9.5/3.2 9.5 3.2 1.4 0.6 12.7/4.2 12.7 4.2 1.7 0.7 15/5 15.0 5.0 1.8 0.7 19.1/6 19.1 6.0 2.2 0.8 25.4/8 25.4 8.0 2.4 1.0 30/10 30.0 10.0 2.5 1.0 39/13 39.0 13.0 2.5 1.0 51/17 51.0 17.0 2.6 1.2 4/1 4.0 1.0 1.0 0.5 6/1.5 6.0 1.5 1.0 0.5 8/2 8.0 2.0 1.2 0.5 12/3 12.0 3.0 1.4 0.6 16/4 16.0 4.0 1.7 0.7 20/5 20.0 5.0 1.8 0.7 24/6 24.0 6.0 2.2 0.8 32/8 32.0 8.0 2.4 1.0 52/13 52.0 13.0 2.5 1.0  | |
| Target Nation: All Nations Target City : All Cities Last Update : 29 August 2024 3:37 AM Number of Views: 41 | Item Owner : Lily Contact Email: Contact Phone: (None) |
