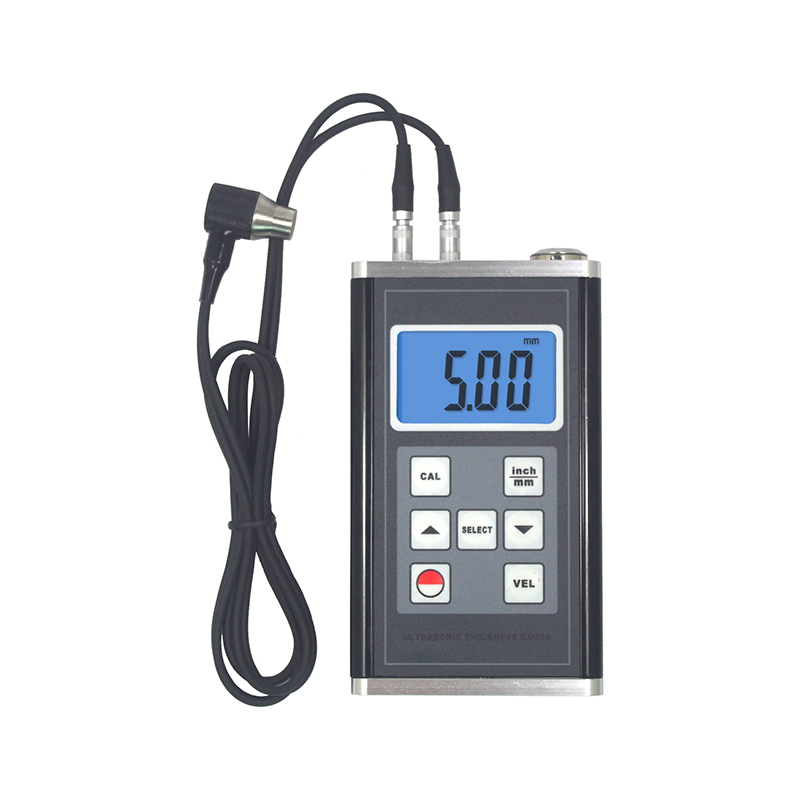

RUM7401 Ultrasonic Thickness Meter | |
Ultrasonic Thickness Meter RUM7401 1.Spec: Used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks,etc.in industries of petroleum, shipbuilding, power station, and machine manufacturing. 2.Features: * Using the latest high performance and low power consumption microprocessor technology. * Bidirectional measurement, for materials within measurement range, thickness is measurable with know velocity, Conversely velocity is measurable with know thickness. * Automatic memory material code and sound velocity value, convenient to use. * Coupling symbol indication. * Use USB/RS-232 data output to connect with PC. * Provide Bluetooth data output choice. 3.Specifications: Display: Large Screen LCD Housing Material: Aluminum Alloy Measuring Range: 0.75~400mm(45#steel,Depend on Probe) Resolution: 0.01mm/0.1mm/0.001 inch Accuracy: ±(0.5%n+0.05) Sound Velocity: 1000~9,990m/s Lower Limit of Pipes: Φ15x2.0mm Φ20x3.0mm(Determined By Transducer) Operating Conditions: Temperature: 0~40º; Humidity: <85%RH Power Supply: 2x1.5V AA(UM-3)Battery Dimensions: 130x76x32 mm Weight: 340g(Not Including Batteries) | |
Target Nation: All Nations Target City : All Cities Last Update : 21 November 2024 1:56 AM Number of Views: 38 | Item Owner : linda Contact Email: Contact Phone: 8617806256878 |
